6 Gang Switch Box Panel

6 Gang Switch Box Panel.

Great when installing more than 1 set of external or internal aftermarket lights or any device that runs out of a 12V source to any vehicle.

Specifications:

• Input voltage: DC 12/24V
• Panel material: zinc alloy
• Circuit box material: high quality ABS+zinc alloy
• Maximum output power: 1200WEach output: 5A/10A/20A/30A options
• Overload protection (maximum output): 60A
• Material: metal die-cast shell + plastic combination
• Lens material: PMMA
• Maximum working temperature: 105℃
• Mounting bracket: yes
• LED light color display: blue/red

What is in the Box:

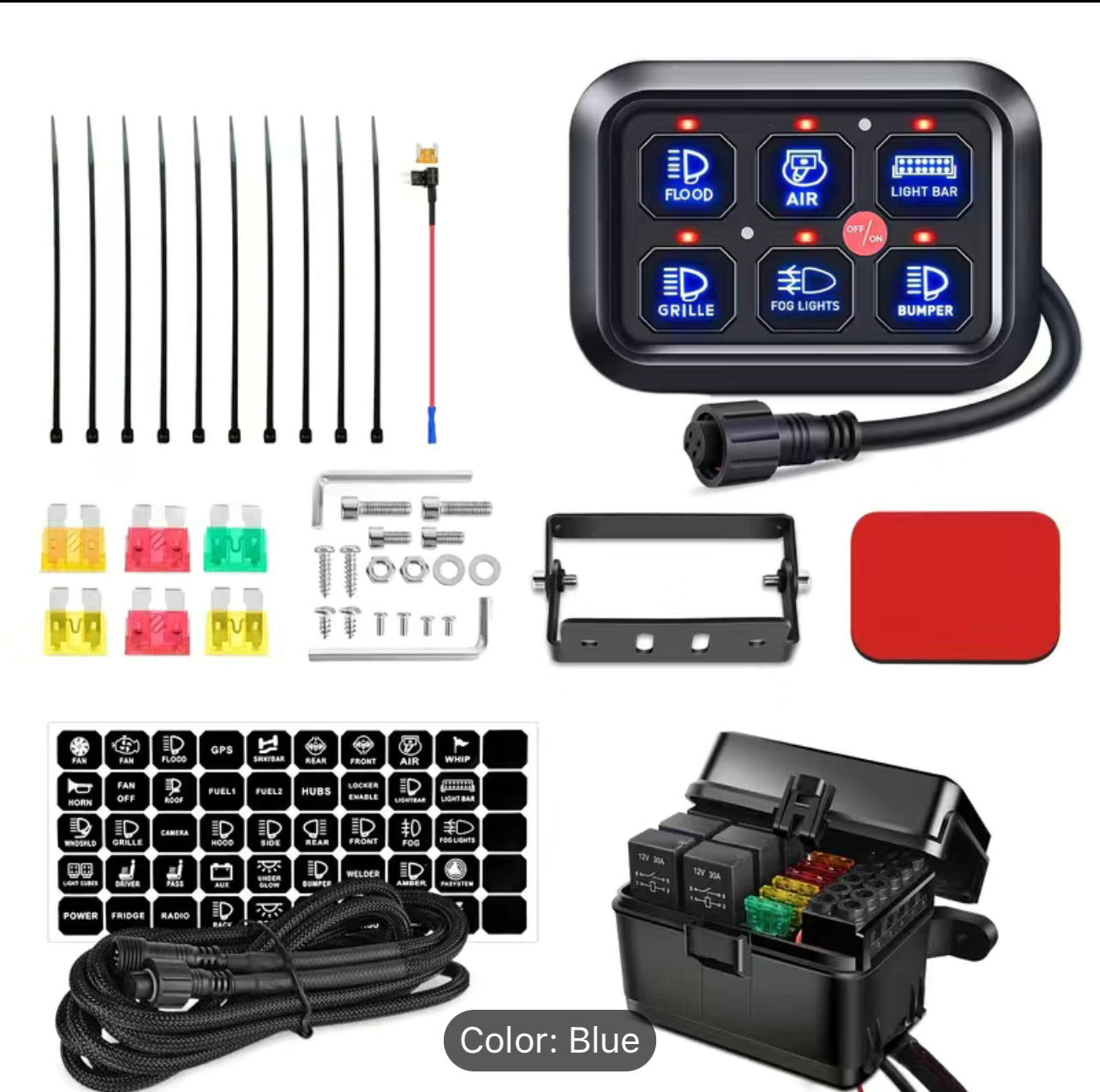

• 1 switch control box - 1 switch panel - 1 mounting bracket - 1 strap - 1 wiring harness - 1 voltage protection switch - 1 piece of self-adhesive label

Installation guide:

• The total power is 600W at 12V, the total power is 1200W at 24V, and the maximum current is 60A.
• The maximum output current of the first and second groups is 30A and the maximum output current of the grounded groups 3-8 is 20A.
• The recommended connection method is to gradually reduce the current from the first group to the eighth group. Please make sure all lights are connected before connecting the power cord. Red, Yellow and White Control

Cable Connection Guide:

• The red cable connects the main switched power cable to the ACC. If you want to light the LED lights before the car starts, please connect the recommended power supply, because the higher the power supply, the more power the battery will consume.2. The yellow connects the width light to the main switch panel.3. The white cable is the panel brightness control cable. It can control 3 brightness levels with each switch. If desired, you can disconnect the white cable to get the brightest switch panel.

Applicable for:

• Light bars
• Spot lights
• Work lights
• Fog lights
• Horns
• Any other accessory that connects to a 12V power source.

Suitable for: Off-road, Jeep, Heavy Duty, SUV, ATV, UTV, Truck, Car, Yacht, etc.
